mpeg4 to mpeg2 transcoder/CATV IPTV Transcoder

FOB Reference Price:Get Latest Price
$1,800.00 - $2,600.00 / Set | 1 Set/Sets CATV IPTV Transcoder (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China
Brand Name:
Shineco
Model Number:
SNK6026A
Item:
CATV IPTV Transcoder
Input:
4 * DVB-S/S2 Tuners+IP
Output:
MPTS&SPTS IP
Rate Control:
CBR/VBR
Management:
Web
Control:
LCD/Keyboard
Warranty:
5 years
Transcoding Channel:
8 SD or 4 HD
Sampling rate:
48KHz
Resolution:
1080p/1080i/720p/576i/480i
Supply Ability
Supply Ability:
2500 Set/Sets per Month we offer OEM&ODM
Packaging & Delivery
Packaging Details
Package: Foam and carton box, 1 set/ ctn
Size:430mm*405mm*45mm
Weight: 4.8kG
Port
China Main Port
Lead Time :
3-5 days



               MPEG-4 to MPEG-2 Transcoder/CATV IPTV Transcoder



                                         Please add Tina skype: shineco.tina for direct discuss and more details.



Outline

Shineco SNK6026A is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 4 tuner inputs to receive channels directly from satellite. And, each tuner is accompanied with a CAM/CI slot to descramble the encrypt content.



In addition, IP content can also be received and trans-coding processed. This transcoder  will at last output MPTS & SPTS through the DATA port (net port) or ASI port.This trans-coder supports advanced multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.



BISS function is now embedded to descramble your tuner input programs and CC function as well to transport your closed caption (or teletext). CC function has been embedded to transport your closed caption (or teletext).It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding.





Key Features

* Support 8*IP (SPTS/MPTS) input plus 4*tuners input with 4 CAM/CI slots



* Support 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output; 1 ASI output



* Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any



* Audio Trans-coding: AAC, MP2 and AC3 any-to-any or pass-through;



* Support maximal 8 SD or 4 HD programs trans-coding



* Support maximal 8 channel audio trans-coding



* Support HD and SD resolutions



* Support CBR and VBR rate control



* Support CC (closed caption)



* Support BISS descrambling



* Support IP out with null packet filtered



* Advanced de-multiplexing



     *  LCD & Key board local control; web-based NMS management





Specification



Stream In

MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/SFP interface

4 * (DVB-S/S2/C/T/ISDB-T/ATSC Optional) Tuners

BISS Descramble

8 programs

Video

Resolution

1920x1080P,1920x1080i,1280x720P, 720x576i, 720x480i

480x576, 544x576, 640x576, 704x576

Trans-coding

4*MPEG2 HD → 4*MPEG2/H.264 HD ;

4*MPEG2 HD → 4*MPEG2/H.264 SD ;

8 *MPEG2 SD → 8 *MPEG2/H.264 SD

4* H.264 HD → 4*MPEG2/H.264 HD ;

4* H.264 HD → 4*MPEG2/H.264 SD ;

8* H.264 SD → 8 *MPEG2/H.264 SD

Rate Control

CBR/VBR

Audio

Trans-coding

MPEG-1 Layer 2, AAC and AC3 any-to-any or pass through

Sampling rate

48KHz

Bit Rate

64Kbps-384Kbps

Stream Out

8*SPTS & 1*MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface (UDP/RTP uni-cast / multicast)  /SFP interface

1*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface

System Function

LCD & Key board control; web-based NMS management

Ethernet software upgrade

General

Dimensions

430mm×405mm×45mm (WxDxH)

Approx weight

4.8 Kg

Temperature range

 0~45℃(Operation), -20~80℃(Storage)

Power requirements

AC 200V-240V, 50/60Hz, 2A

Power consumption

20W

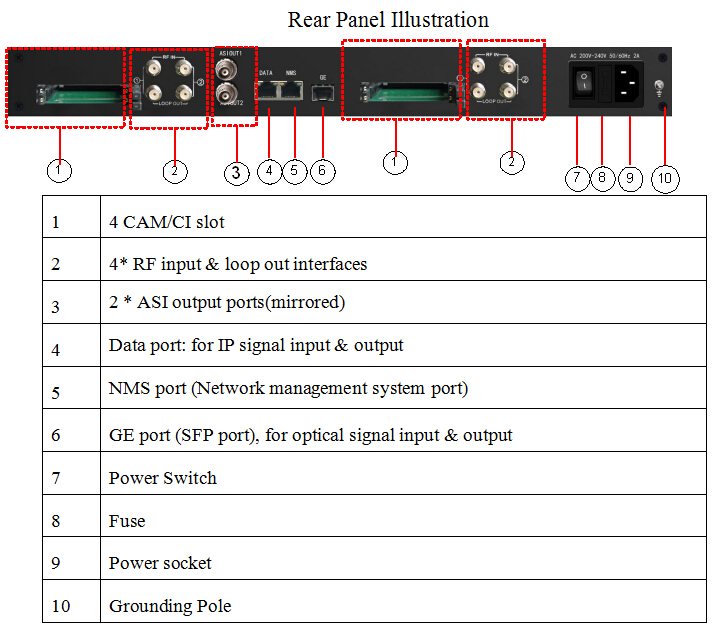

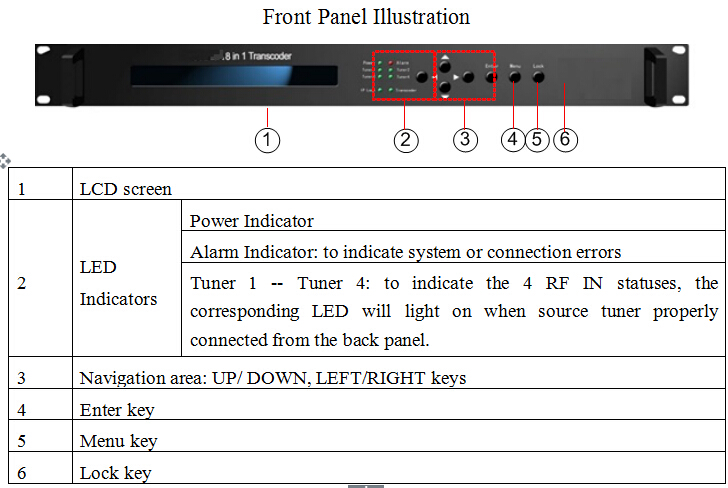

Front and Rear Panel of Shineco SNK6026S IPTV  transcoder



248 Front.jpg

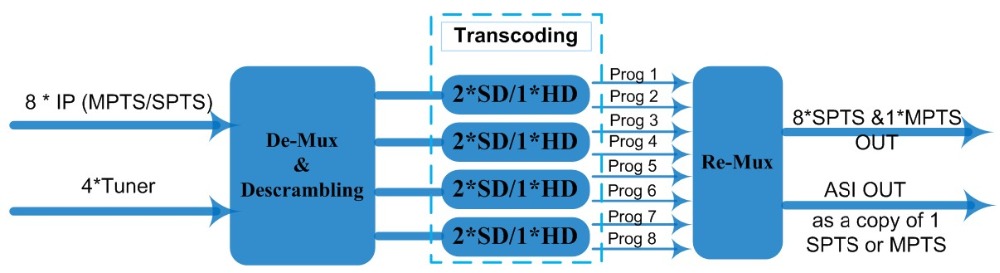

Principle Chart

248 Transcoder.jpg

Transcoding  Example

2  1.png

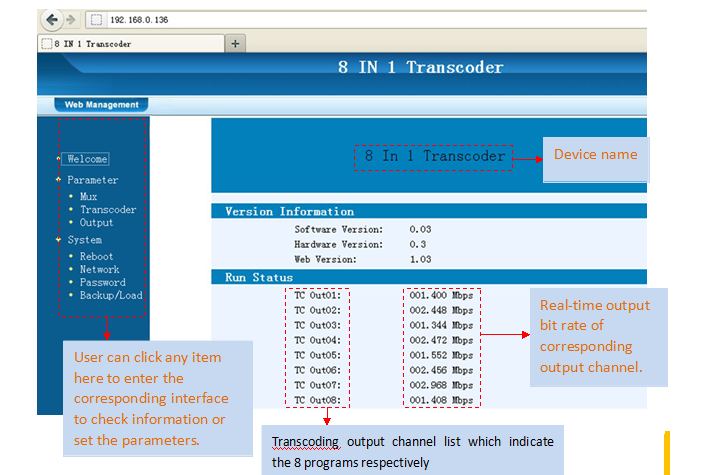

Operation and Managment Page(Web Managment)

Connect the PC and the device with net cable, and use ping command to confirm they are on the same network segment.

2
